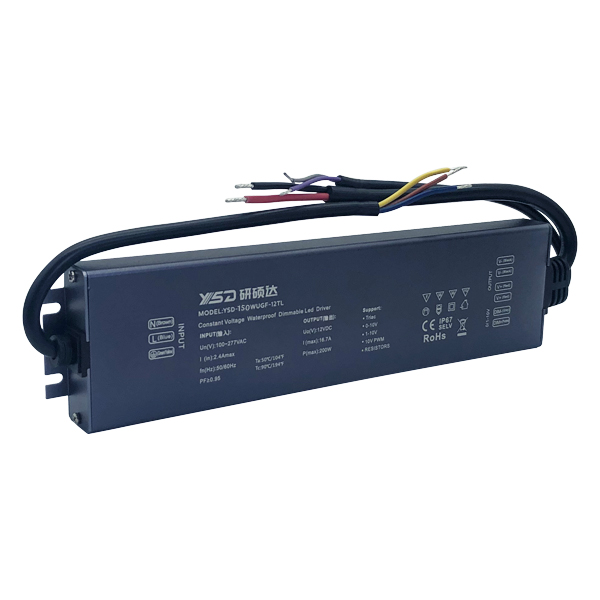

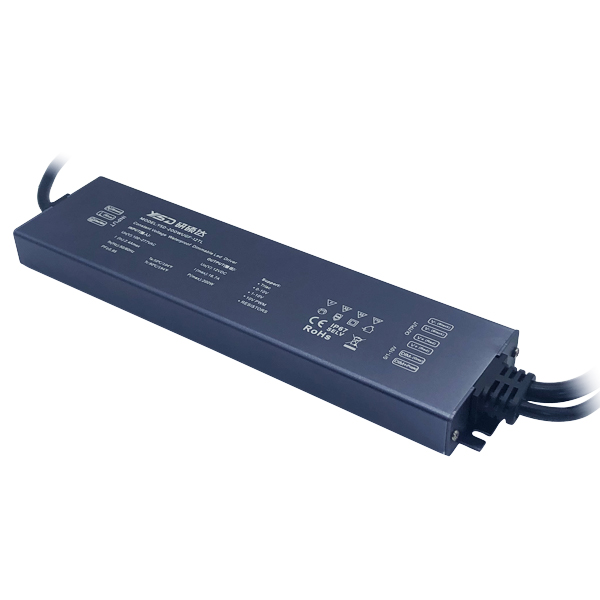

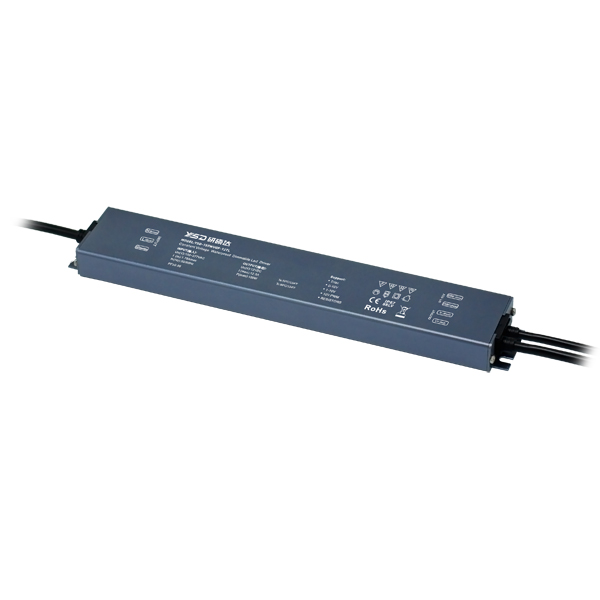

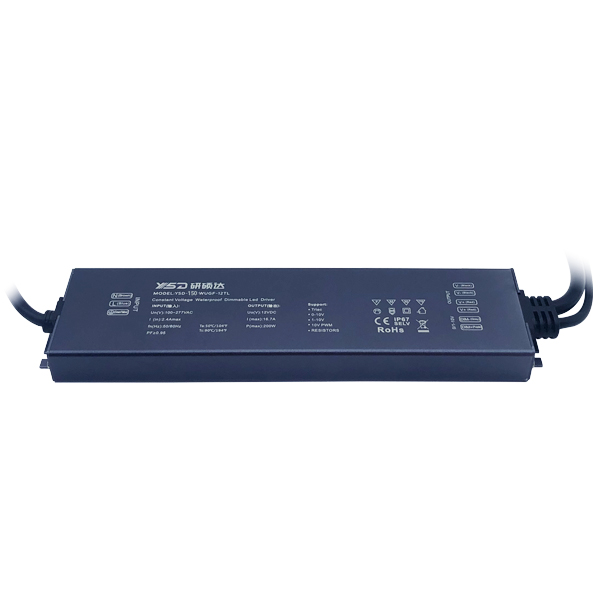

150W 12V/24V CV high-end dimmable waterproof LED power supply YSD-150W/GF

● PF test under AC 220V and full loading

● Input voltage：100-277Vac

● Output voltage：12V，24V

● Output power range：0~150W

● Power factor：PF>0.95/230Vac,at full load

● Efficiency：90%

● Dimming interface：triac/0-10V/1-10V/10V PWM/resistance DIM

● Dimming range：0~100%，dimming depth：Max.1%

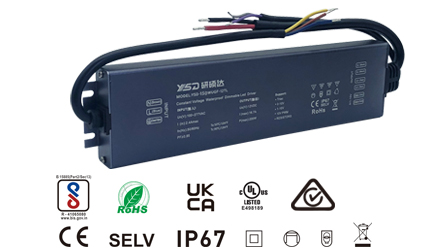

● Certificates：CE,BIS,UL,ROHS

● Warranty period：5 years

● Download

Contact us

DESCRIPTION

五合一调光防水电源 12v 24V 150W

五合一调光防水电源 12v 24V 150W

五合一调光防水电源 12v 24V 150W
