How to connect the three output lines of led light strip to the power supply wiring diagram

2020-01-02 16:43:37

 How to connect the three output lines of led light strip to the power supply /LED driver wiring diagram

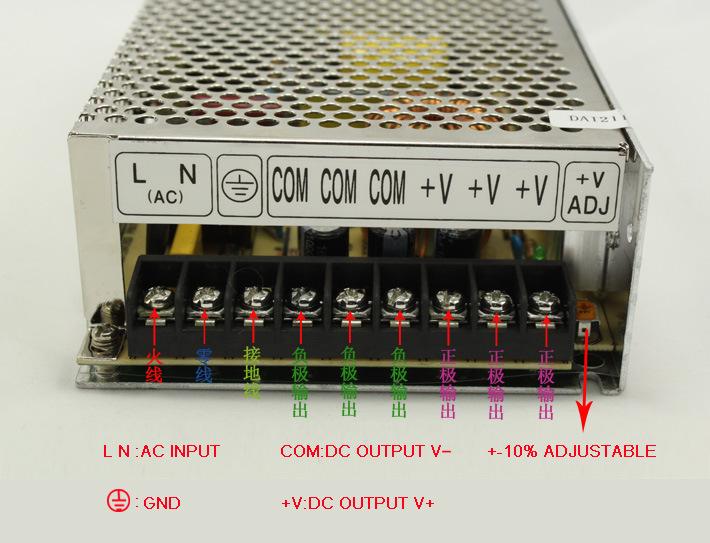

Connect the LED red and black wires directly to the transformer's output positive and negative poles, connect the positive and negative poles of the power cord to the transformer's input positive and negative poles, and plug directly into the plug.



Definition:

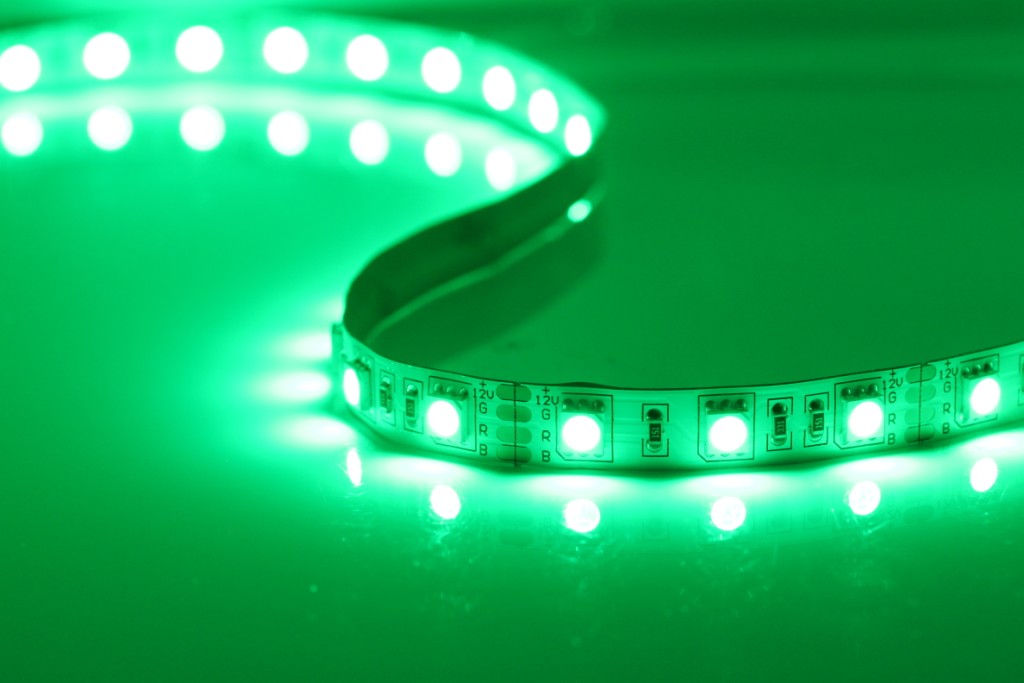

Led light strip refers to the assembly of led in a ribbon of FPC(flexible circuit board) or PCB hard board, because the shape of the product is like a strip of the name. Because the service life is long (the general normal life is in 80,000 ~ 100,000 hours), and very energy-saving and green environmental protection and gradually in a variety of decoration industry.

Brief introduction:

Light belt, is the abbreviation of LED light belt, most people are not used to the noun is too long, so the front of the LED to omit, directly called the light belt. In this way, the name of the lamp belt also includes many old lamp belts that used to connect LED directly with wire instead of FPC or PCB, such as big two, big three, round two, etc., of course, it also includes flexible lamp belt and hard lamp belt.



Classification:

LED light strip can be divided into flexible LED light strip and LED hard light strip.

Features:

Soft, can freely curl.



It can be cut and bonded



The light bulb and the passage are completely covered in the flexible plastic, the insulation, the waterproof function is good, the use of insurance.

Strong weather resistance.



No easy break, use life long.



Easy to produce graphics, text and other modeling; The present has been widely used to whitewash and illuminate things under construction, Bridges, paths, gardens, courtyards, strata, painted boards, furniture, buses, lakes, underwater, posters, pink plates, signs, etc
