What is Waterproof Dimmable LED Power Supply
2023-11-29 17:01:01

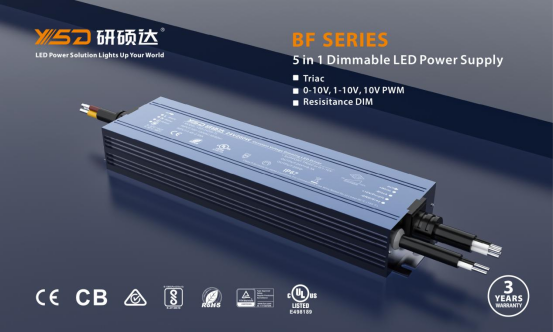

LED dimming power supply is divided into many types, there are Dali dimming, Triac dimming, 0-10V dimming, 1-10V dimming, 10V PWM dimming, Resistor dimming and so on. Customers need to choose the dimming method which can match with their own dimmers. Our 5 in 1 dimming power supply includes Triac dimming, 0-10V dimming, 1-10V dimming, 10V PWM dimming, Resistor dimming. One power supply has multiple dimming modes, it can meet the multiple needs of customers and cost savings!
Specification:
Power:100W~300W, 100% full power
Input Voltage: 100-130VAC or 175-264VAC
Output Voltage: 12V or 24V
High quality, up to 50000-hour life time, 3 years warranty
Cooling by free air convection
100% full load burn-in test
Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.
Dimming:

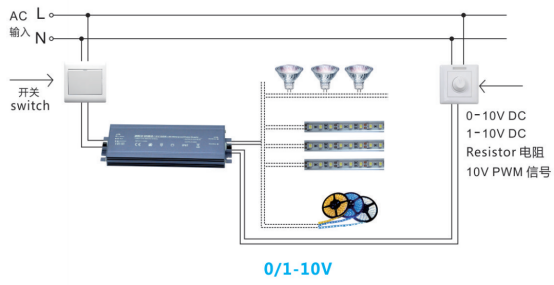

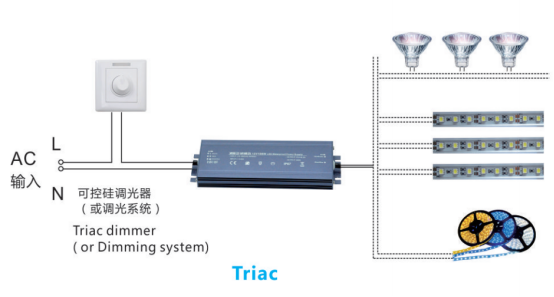

5 in 1 Dimming: Triac/0-10V/1-10V/10V PWM/Resistor dim
Dimming range: 0~100%, LED start at 1% possible.
0-100% flicker-free, High frequency exemption level.
Soft and smooth, Flicker-free, Jitter Free
A variety of dimming, simultaneous control, no interference
Widely used in major brands such as Europe, Australia and America( Lutron, Clipsal, Dynalite) series of dimmers.
Application:
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ. It could be used for indoor decoration lighting , LED light strips，LED modules,LED outdoor christmas lights. The users can adjust the brightness to their own preference through the dimmer.
