HOME > PRODUCTS > Dimmable LED power supply > CP LED power supply

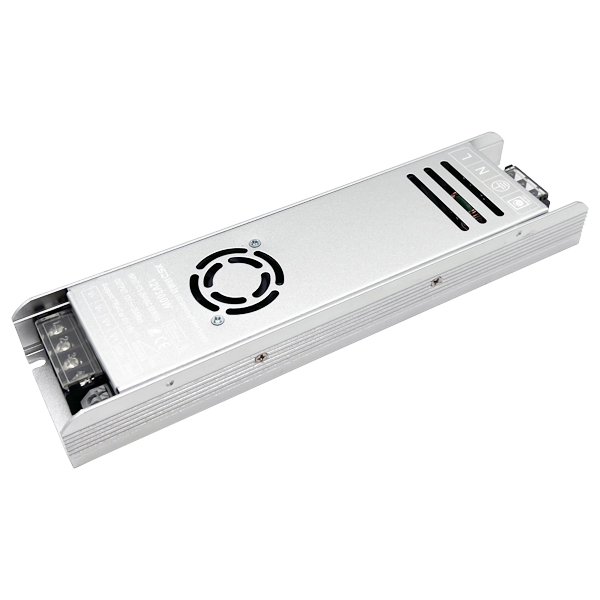

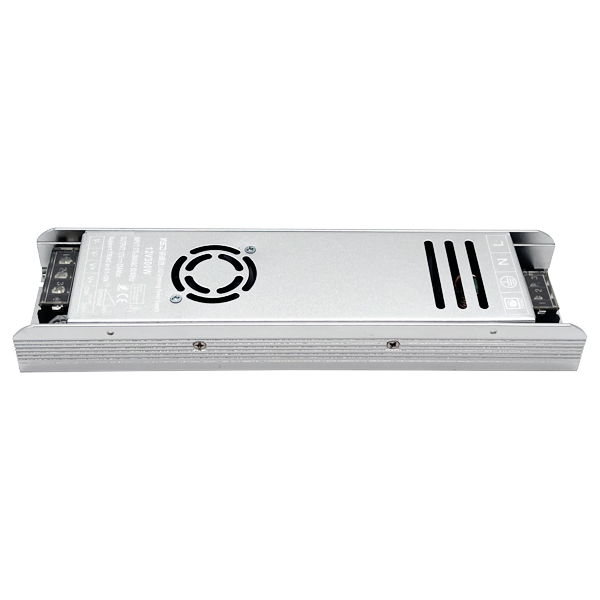

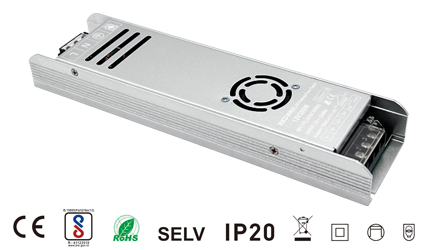

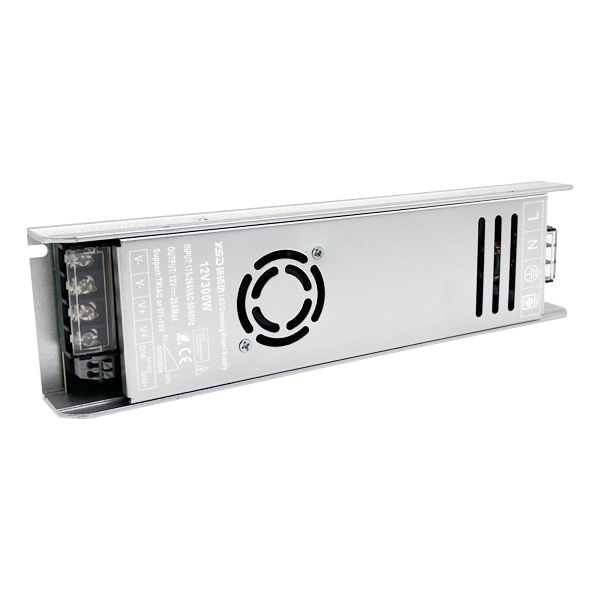

300W 12V/24V CV dimmable LED power supply YSD-300W/CP

PF test under AC 220V and full loading
Input voltage:175-264Vac or 100-130Vac
Output voltage:12V,24V
Output power range:0~300W
Power factor:PF>0.55/230Vac,at full load
Efficiency:86%
Dimming interface:triac/0-10V/1-10V/10V PWM/resistance DIM
Dimming range:0~100%,dimming depth:Max.1%
Certificates:CE,BIS,ROHS
Warranty period:3 years

● Download
  • DESCRIPTION

IP20调光普通电源 24V300w

IP20调光普通电源 24V300w

IP20调光普通电源 24V300w
