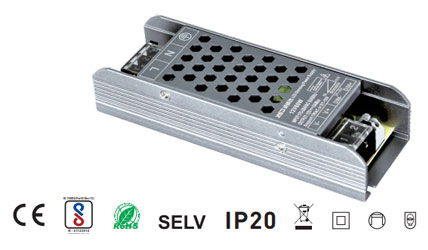

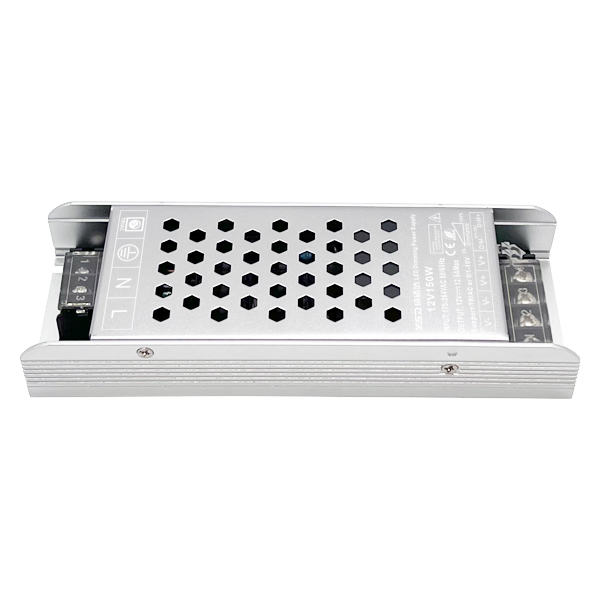

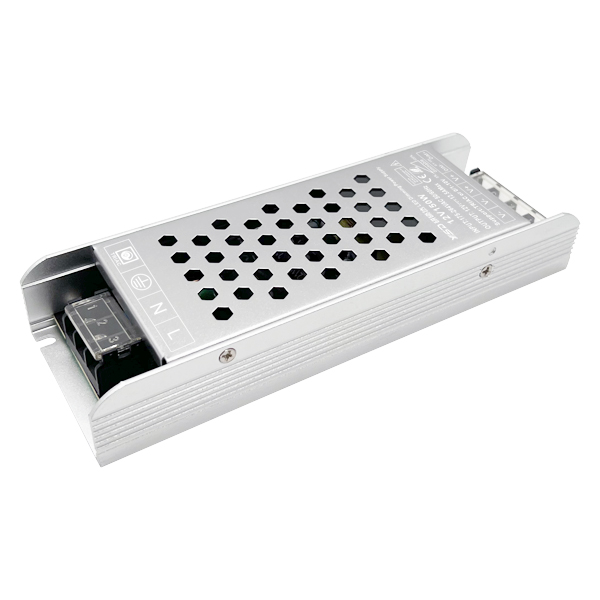

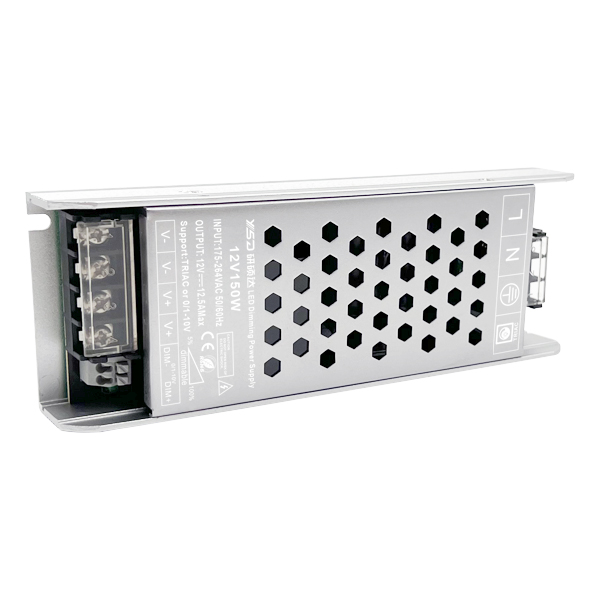

150W 12V/24V CV dimmable LED power supply YSD-150W/CP

● PF test under AC 220V and full loading
● Input voltage:175-264Vac or 100-130Vac
● Output voltage:12V,24V
● Output power range:0~150W
● Power factor:PF>0.55/230Vac,at full load
● Efficiency:86%

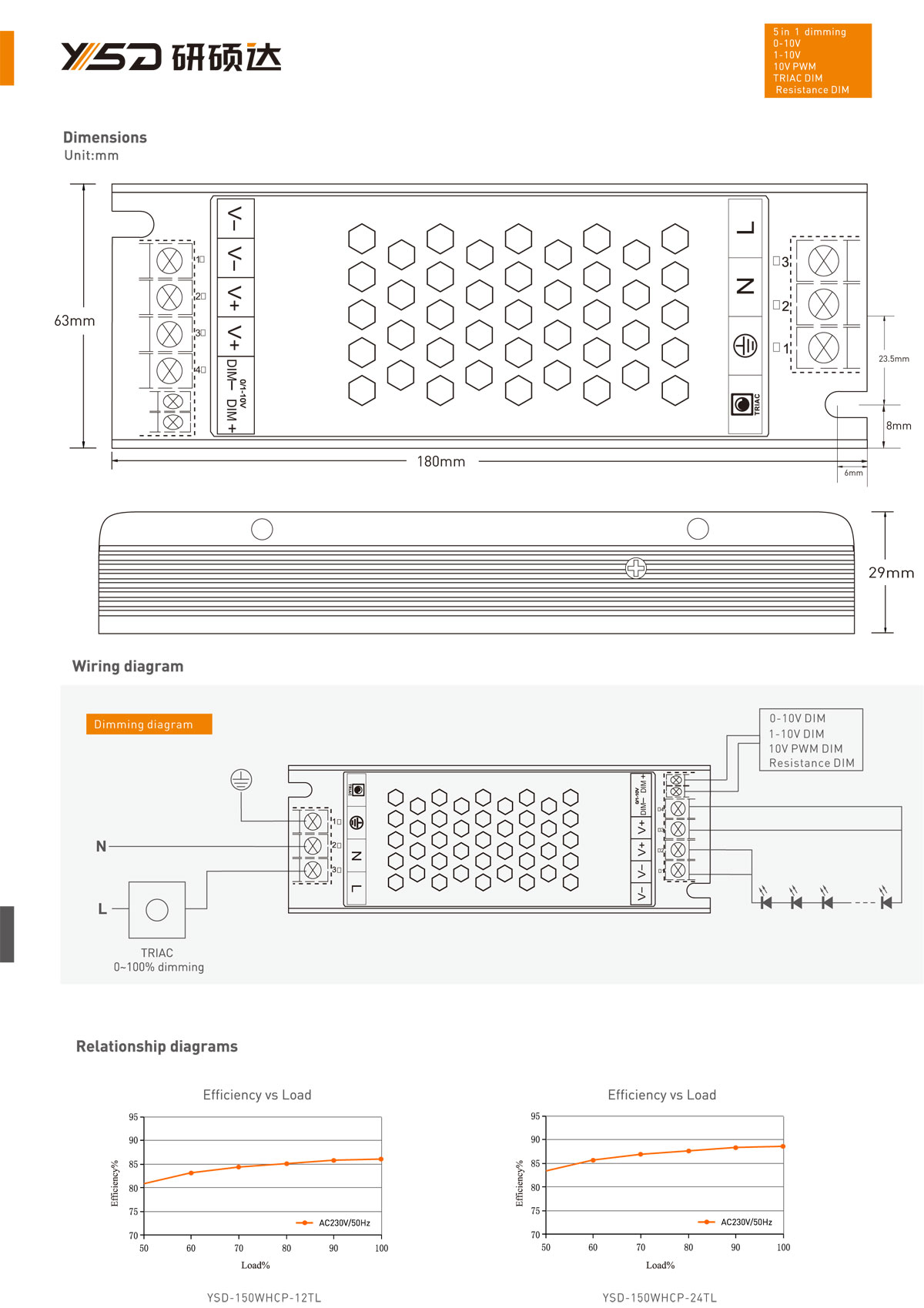

● Dimming interface:triac/0-10V/1-10V/10V PWM/resistance DIM
● Dimming range:0~100%,dimming depth:Max.1%
● Certificates:CE,BIS,ROHS
● Warranty period:3 years

● Download
  • DESCRIPTION

IP20调光普通电源 24V150w

IP20调光普通电源 24V150w

IP20调光普通电源 24V150w
