YSD-dc power supply -LED driver 100w

● PF test under AC 220V and full loading
● Input voltage:100-264V
● Output voltage:12V,24V power supply
● Output power range:0~100W
● Power factor:PF>0.6
● Efficiency:90%

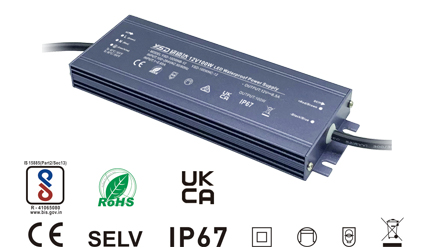

● Certificates:CE,BIS,ROHS UKCA
● Warranty period:3 years

● Download
● Specializing in LED waterproof power supply for 15 years,  stable performance, reliable quality, all aging, short circuit protection, overvoltage protection, overload protection, over temperature protection
  • DESCRIPTION

 12V100W 8.5A DRIVER. Shenzhen Yanshuoda LED power supply is a professional manufacturing drivers company in China with over 15 years experience ; YSD economic series -AB series  of our IP67 waterproof power supply  24V 100W .IP67 LED strips power supply with 3 years warranty  ;have CE ,ROHs ,BIS.UKCA. certificate;Passed EMC ,with anti-interference,anti-radiation;perfect choice for outdoor lighting project;input 170-264V/100-130V ,PF>0.6,could be used for outdoor decoration lighting , light strips,commercial light advertising board etc.Very good quality with excellent components inside

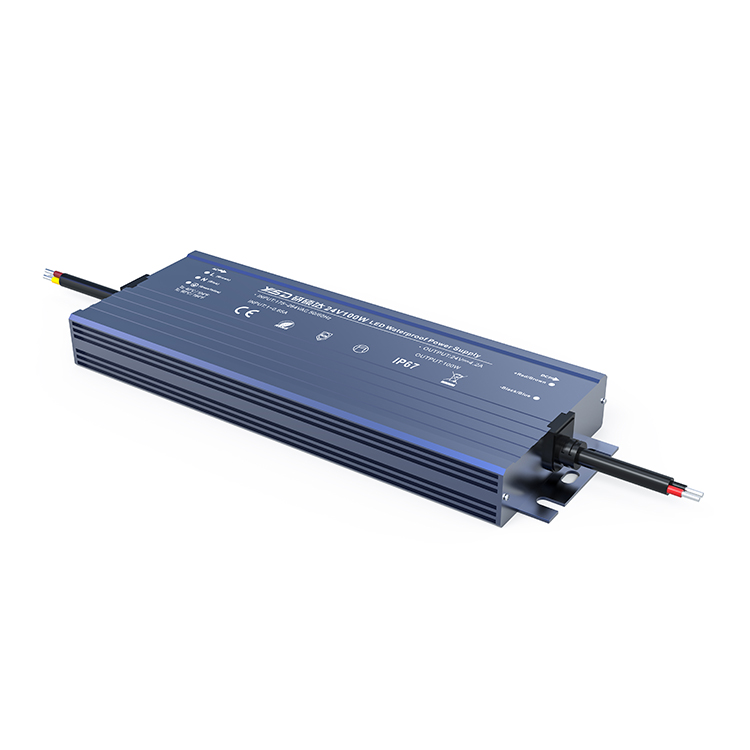

LED Waterproof Power Supply  100W
● Protections:short circuit/over load/over voltage/over temperature
● IP67 design for indoor or outdoor installation
● It can be used in dry ,wet and rainy environment Cooling by free air, high reliability
● 100% full load burn-in test
● Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ. Widely used in LED lighting and IT equipment
● IS 15885(Part2/Sec13)
● Compliance to worldwide safety regulation for led lightings.

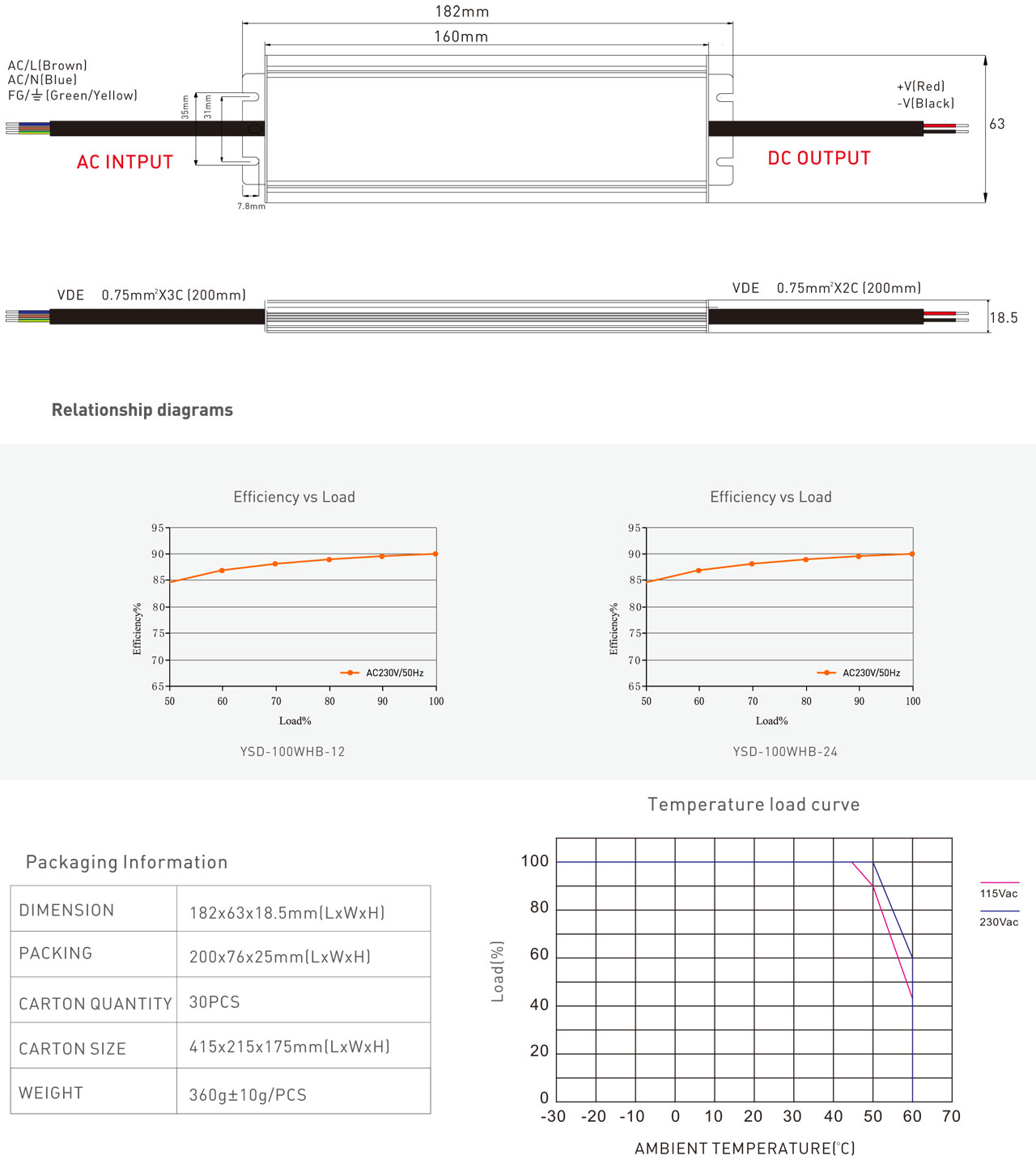

Specification

MODEL   LED POWER SUPPLY YSD-100WHB-12 YSD-100WHB-24
OUTPUT Output voltage 12VDC 24VDC
Output voltage range 12VDC±0.5VDC 24VDC±0.5VDC
Output сurrent Max 8.5A Max 4.2A
Output power Max 100W
Output power range 0~100W
Ripple & Noise ≤120mV ≤240mV
Linear Regulation ±1%
Load Regulation ±1%
Start-up Time (Typ) 500ms/230VAC 800ms/115VAC
Hold Up Time(Typ) 100ms/230VAC 100ms/115VAC
INPUT Input voltage 100-264Vac
Frequency 50/60Hz
Input сurrent 0.84A/230Vac or 1.47A/115Vac
Power factor PF>0.6
No-load power consumption <3W
Efficiency (typ.) 90% 90%
Inrush current(typ.) Cold start 55A at 230Vac
Control surge capability L,N:2KV L,N-PE:4KV
Leakage сurrent Max. 0.5mA
ENVIRONMENT Working temperature ta: -30°C~ 50°C tc: 80°C
Working humidity 20 ~ 99%RH, condensing (Waterproof)
Storage temp., humidity  -40°C ~ 80°C, 10~95%RH
PROTECTION Overtemperature Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore.
Over load protection Shut down the output when current load ≥110%~150%, auto recovers.
Short circuit protection Protection type: It can be automatically restored after the fault is eliminated.
SAFETY&EMC Withstand voltage I/P-O/P:3750Vac
Isolation resistance I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety standards IEC/EN61347;IEC/EN60950;IP67
EMC Test Standards EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013
Reliabilityand Quality Control Impact aging 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C
Component derating Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value
NOTE

1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature.

2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth.

3.Ensure that the power supply is used under the rated parameters and environment.


100W 12V/24V CV waterproof LED power supply YSD-100W-12/YSD-100W-24
