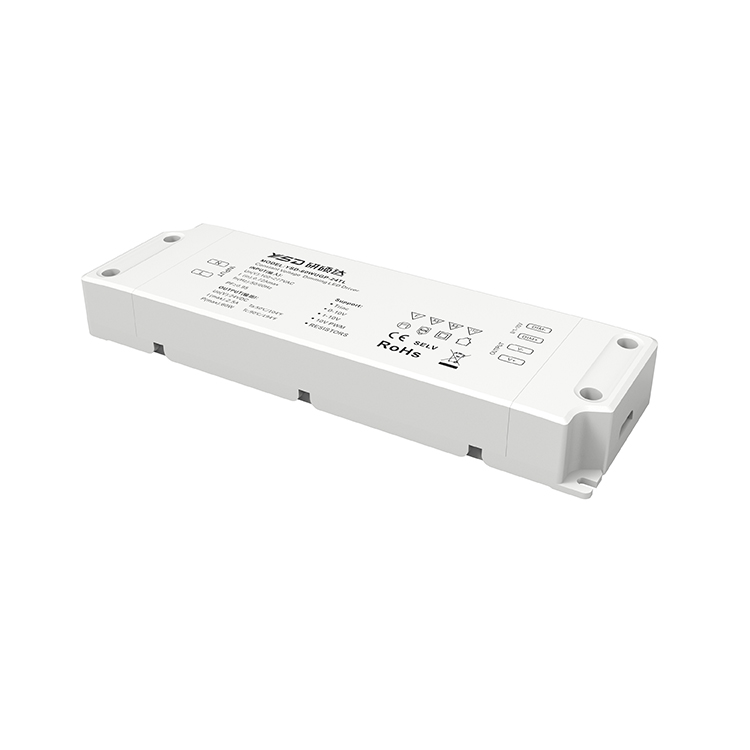

LED lights dimmable-power supply- LED driver

● PF test under AC 220V and full loading
● Input voltage:100-277Vac
● Output voltage:12V,24V
● Output power range:0~60W
● Power factor:PF>0.95/230Vac,at full load
● Efficiency:88%
● Dimming interface:triac dimmer /0-10V dimmer /1-10V dimmer /10V PWM dimmer /resistance DIM dimmer
● Dimming range:0~100%,dimming depth:Max.1%
● Certificates:CE,BIS,ROHS
● Warranty period:5 years

● Download
  • DESCRIPTION
 Shenzhen YSD, 15 years power supply experience ;  60W dimmer power supply of GP series Triac + 0-10V dimmable power suuply /,dimmable light switch /,with 5 years warranty ;haveCE ,ROHs  certificate; Soft and smooth, Flicker-free, Jitter free, A variety of dimming, simultaneous control, no interference; Widely used in light switch dimmer such as Europe, Australia and America(Lutron, Clipsal, Dynalite) series of dimmers; as well as philips hue dimming switch, input 170-264V/100-130V, PF>0.95,could be used for indoor decoration lighting , light strips,led outdoor christmas lights, 12v 24v dimmer switch power suuply. 200W dimmer light switch power supply. Very good quality with excellent components like adjustable resistance

led lights dimmable-power supply-  LED driver
● Dimming interface:triac dimmer /0-10V dimmer /1-10V dimmer /10V PWM  dimmer /resistance DIM dimmer
● With soft-on and fade in function, visual more comfortable.
● Dimming range: 0~100%, LED start at 1% possible.
● 0-100% flicker-free, High frequency exemption level.
● High Efficient driver: efficiency 88%,PF>0.95, THD<10%
● Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.
● Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
● Up to 50000-hour life time.

Specification
MODEL  led switch dimmer YSD-60WUGP-12TL YSD-100WUGP-24TL
OUTPUT Output voltage 12V DC  24V DC
Output voltage range 12VDC±0.3VDC 24VDC±0.6VDC
Output Current Max 5A Max 2.5A
Output power Max 60W
Output power range 0~60W
Ripple & Noise ≤200mV ≤400mV
Dimming range 0~100%, dimming depth: Max. 1%
With or without strobe No strobe
PWM frequency 3500Hz
INPUT Dimming interface TRIAC/ 0-10V/1-10V/10V PWM/RESISTANCE DIMMING DRIVER
Input voltage 100-277Vac
Frequency 50/60Hz
Input current 0.72~0.26A
Power factor PF>0.95/230Vac, at full load
THD ≤10% at 230Vac, at full load
Efficiency (typ.) 90% 90%
Inrush current(typ.) Cold start 30A at 230Vac
Control surge capability L-N:2KV
Leakage current Max.0.5mA
ENVIRONMENT Working temperature ta: -30°C ~ 50°C tc: 80°C
Working humidity 20 ~ 95%RH, non-condensing
Storage temp., humidity -40°C ~ 80°C, 10~95%RH
Vibration 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION

Overtemperature

Protection type:Shut down o/p voltage,re--power on to recover
Over voltage protection Shut down the output when non-load voltage≥13V,re-power on to recover after fault condition is removed. Shut down the output when non-load voltage≥26V,re-power on to recover after fault condition is removed
Over load protection Shut down the output when current load ≥110%, auto recovers.
Short circuit protection Protection type: 1. When the first-level short-circuit protection is triggered, the fault can be automatically recovered;2. When the second-level short-circuit protection is triggered, the power needs to be turned on again after the fault is eliminated
SAFETY&EMC Withstand voltage I/P-O/P: 3750Vac
Isolation resistance I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety standards IEC/EN61347-1, IEC/EN61347-2-13
EMC emission EN55015, EN61000-3-2 Class C, IEC61000-3-3
EMC immunity EN61000-4-2,3,4,5,6,8,11 EN61547
Strobe test standard IEEE 1789
