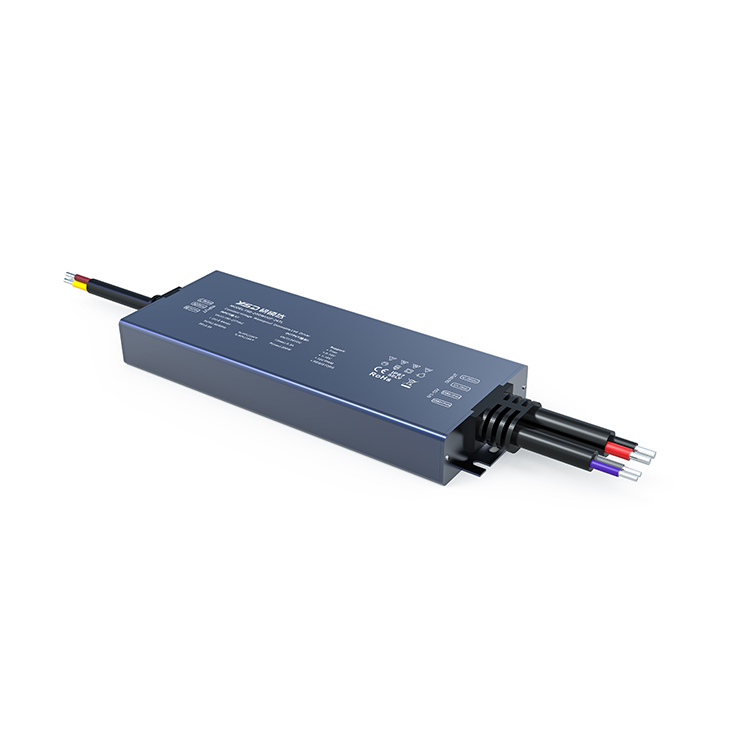

dimmable led lights-power supply-PF0.95

● PF test under AC 220V and full loading

● Input voltage：100-277Vac

● Output voltage：12V，24V

● Output power range：0~200W

● Power factor：PF>0.95/230Vac,at full load

● Efficiency：90%

● Dimming interface：Triac dimmer /0-10V dimmer /1-10V dimmer /10V PWM dimmer /resistance DIM dimmer

● Dimming range：0~100%，dimming depth：Max.1%

● Certificates：CE,BIS,UL,ROHS,UL,SAA,UKCA,ETL

● Warranty period：5 years

● Download

DESCRIPTION

dimmable led lights-power supply-PF0.95

● Triac dimmer /0-10V dimmer /1-10V dimmer /10V PWM dimmer /resistance DIM dimmer

● With soft-on and fade in function, visual more comfortable.

● Dimming range: 0~100%, LED start at 1% possible.

● 0-100% flicker-free, High frequency exemption level. High

● Efficient driver: efficiency 90%,PF>0.95, THD<10%

● Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.

● Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.

● Up to 50000-hour life time.

Specification

MODEL	dimmer switch	YSD-200WUGF-12TL	YSD-200WUGF-24TL
OUTPUT	Output voltage	12VDC	24VDC
	Output voltage range	12VDC±0.3VDC	24VDC±0.6VDC
	Output Current	Max 16.6A	Max 8.3A
	Output power	Max 200W
	Output power range	0~200W
	Ripple & Noise	≤200mV	≤400mV
	Dimming range	0~100%, dimming depth: Max. 1%
	With or without strobe	No strobe
	PWM frequency	3500Hz

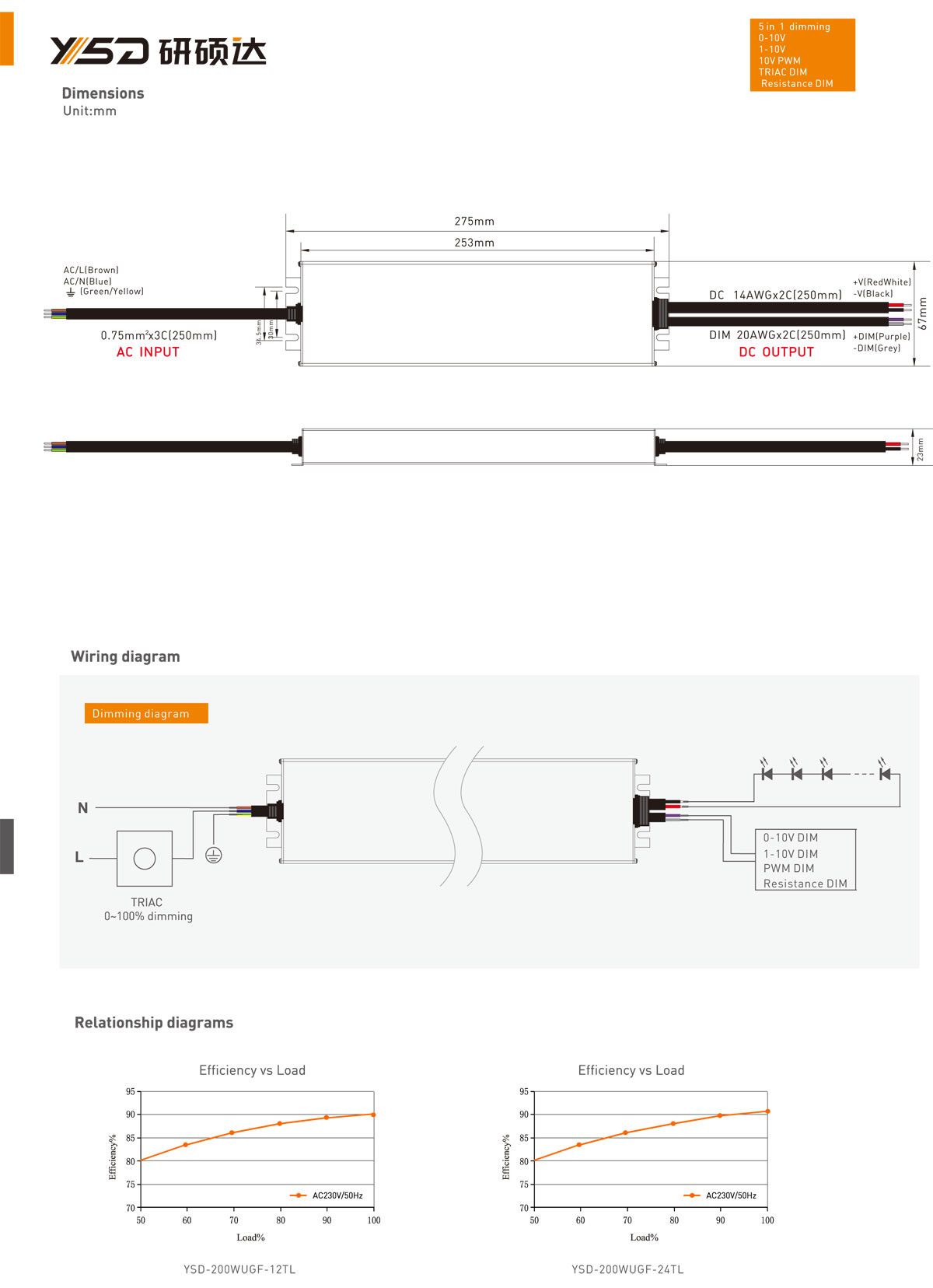

INPUT	Dimming interface	Triac dimmer /0-10V dimmer /1-10V dimmer /10V PWM dimmer /resistance DIM dimmer
	Input voltage	100-277Vac
	Frequency	50/60Hz
	Input current	2.36~0.85A
	Power factor	PF>0.95/230Vac, at full load
	THD	≤10% at 230Vac, at full load
	Efficiency (typ.)	90%	91%
	Inrush current(typ.)	Cold start 50A at 230Vac
	Control surge capability	L-N:2KV
	Leakage current	Max.0.5mA
ENVIRONMENT	Working temperature	ta: -30°C ~ 50°C tc: 80°C
	Working humidity	20 ~ 95%RH, non-condensing
	Storage temp., humidity	-40°C ~ 80°C, 10~95%RH
	Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION	Overtemperature	Protection type:Shut down o/p voltage,re--power on to recover
	Over voltage protection	Shut down the output when non-load voltage≥13V,re-power on to recover after fault condition is removed.	Shut down the output when non-load voltage≥26V,re-power on to recover after fault condition is removed
	Over load protection	Shut down the output when current load ≥110%, auto recovers.
	Short circuit protection	Protection type: 1. When the first-level short-circuit protection is triggered, the fault can be automatically recovered;2. When the second-level short-circuit protection is triggered, the power needs to be turned on again after the fault is eliminated
SAFETY&EMC	Withstand voltage	I/P-O/P: 3750Vac
	Isolation resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
	Safety standards	IEC/EN61347-1, IEC/EN61347-2-13
	EMC emission	EN55015, EN61000-3-2 Class C, IEC61000-3-3
	EMC immunity	EN61000-4-2,3,4,5,6,8,11 EN61547

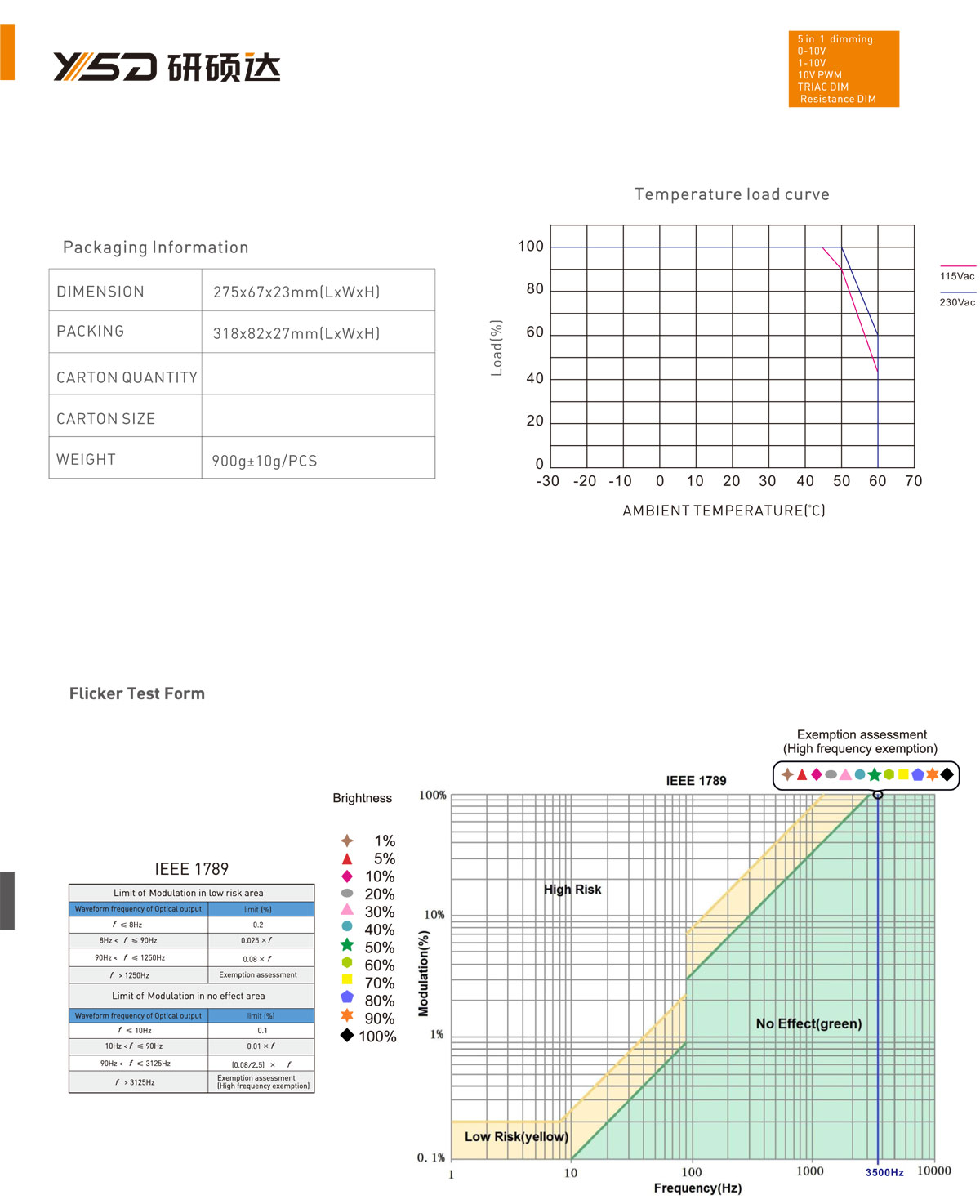

	Strobe test standard	IEEE 1789
