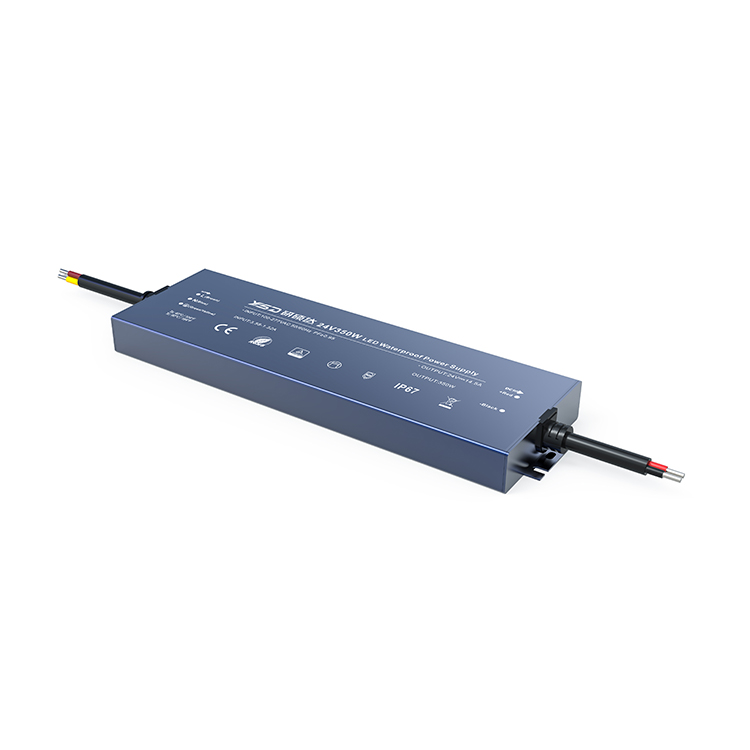

350W 12V/24V CV ultra-thin waterproof LED power supply YSD-350W/D

DC 12V power supply/DC 24V power supply/ 350W power supply

● PF test under AC 220V and full loading

● Input voltage：170-277V/ 100-130V

● Output voltage：12V，24V power supply

● Output power range：0~350W

● Power factor：PF>0.96/230Vac,at full load.PF>0.98/115Vac,at full load

● Efficiency：93%

● Certificates：CE,CB,TUV,SAA,BIS,ROHS,CCC,UL

● Warranty period：5 years

● Download

DESCRIPTION

LED Ultra-Thin Strip Power Supply
switch mode power supply
● CV/CC Output Model
● Active PFC, PF>0.95,THD<15%

● Ultra-thin linear size, width only 30mm, suitable for ultra-small space installation

● Full protection insulation plastic shell, no ground wire, fast installatior

● Multiple protection circuit： short circuit, over current, over voltage, over temperature

● Widely used in LED panel, LED Strip, advertising sign light-box, home decoration lighting, office lighting, etc

● Passed EMC, anti-interference, anti radiation

● Comply with ERP instruction, standby power consumption < 0.5W

MODEL

LED power supply

YSD-350WUD-12

YSD-350WUD-24

YSD-350WUD-36

YSD-350WUD-48

OUTPUT

Output voltage

12V DC power supply

24V DC power supply

36V DC power supply

48V DC power ssupply

Output voltage range

12VDC±0.3VDC

24VDC±0.6VDC

36VDC±0.9VDC

48VDC±1.2VDC

Constant current range

8.0~12V

16.0~24V

24.0~36V

32.0~48V

Output current

Max 29A

Max 14.5A

Max 9.8A

Max7.3A

Output power

Max /350W POWER SUPPLY

Output power range

0~350W

Ripple & Noise

≤250mV

Linear Regulation

±1%

Load Regulation

±1%

Start-up Time (Typ)

500ms/230VAC 800ms/115VAC

Rise Time(Typ)

11ms/230VAC 11ms/115VAC

Hold Up Time(Typ)

19ms/230VAC 19ms/115VAC

INPUT

Input voltage

110-277Vac

Frequency

50/60Hz

Input current

2.25A/110VAC , 1.53A/240VAC , 0.77A/277V

Power factor

PF>0.96/230Vac, at full load;PF>0.98/115Vac, at full load

No-load power consumption

＜0.5W

THD

≤15% at 230Vac,at full load;

≤10% at 115Vac,at full load

Efficiency (typ.)

93%

93.5%

94%

Inrush current(typ.)

65A/230VAC

Control surge capability

L,N:1KV L,N-PE:2KV

Leakage current

Max.0.5mA

ENVIRONMENT

Working temperature

ta: -30°C ~ 50°C tc: 80°C

Working humidity

20 ~ 95%RH, Non-condensing

Storage temp., humidity

-40°C ~ 80°C, 10~95%RH

Vibration

10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.

PROTECTION

Overtemperature

Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore.

Over voltage protection

Output voltage ≥120%-140%, turn off the output,after the abnormality is eliminated, re-energize to recover

Over load protection

Load current ≥102%~110%, turn off the output, and automatically recover after the fault is eliminated.

Short circuit protection

Protection type: It can be automatically restored after the fault is eliminated.

SAFETY&EMC

Withstand voltage

I/P-O/P: 3750Vac

Isolation resistance

I/P-O/P: 100MΩ/500VDC/25°C/70%RH

Safety standards

IEC/EN61347;UL8750;GB19510

EMC emission

EN55015:2013;FCC Part15B;EN61547:2009;EN61000-3-2:2014;EN61000-3-3:2013

EMC immunity

EN61000-4-2,3,4,5,6,8,11 EN61547

Reliability and Quality Control

Impact aging

100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C

Component derating

Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value

NOTE

1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature.

2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth.

3.Ensure that the dc power supply is used under the rated parameters and environment.
