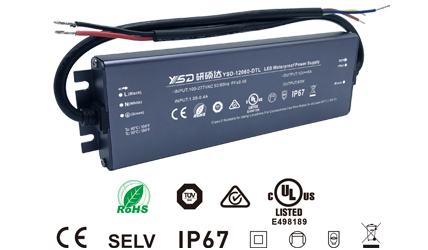

60W 12V/24V CV ultra-thin waterproof LED power supply

60W 12V/24V CV ultra-thin waterproof LED power supplyYSD-60W/D

DC 12V power supply/DC 24V power supply/ 60W power supply

● PF test under AC 220V and full loading

● Input voltage：100-277V

● Output voltage：12V，24V power supply

● Output power range：0~60W

● Power factor：PF>0.96/230Vac,at full load.PF>0.98/115Vac,at full load

● Efficiency：93%

● Certificates：CE,CB,TUV,SAA,UL,BIS,ROHS,CCC UKCA

● Warranty period：5 years

● Download

DESCRIPTION

YSD new series -D series of our IP67 ultra thin and long slim drivers/ 12V power supply ,24V dc power supply /60W ,with 5 years warranty ;have CE ,ROHs ,BIS ，SAA，CB，TUV UL certificate;New design for easier installation,with height only have 18mm ,perfect choice for small space indoor or outdoor lighting project;input 100-277V ,PF>0.95 .could be used for indoor home decoration lighting , light strips，commercial light advertising board ，professional project power supply etc

LED Ultra-Thin Power Supply(CV)

switch mode power supply

● Universal AC input/full range(100-277VAC)

● Built in active PFC function

● Efficiency up to 93%, super thin and small size.

● Protections:short circuit/over load/over voltage/over temperature

● IP67 design for indoor or outdoor installation

● It can be used in dry ,wet and rainy environment.

● Cooling by free air, high reliability

● Up to 50000- hour life time

● Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.

● Widely used in LED lighting and IT equipment

● Compliance to worldwide safety regulation for led lightings.

Specification

MODEL	LED power supply	YSD-60WHD-12 YSD-12060-QTL	YSD-60WHD-24 YSD-24060-QTL
OUTPUT	Output voltage	12V DC power supply	24V DC power supply
	Output voltage range	12VDC±0.5VDC	24VDC±0.5VDC
	Output сurrent	Max 5A	Max 2.55A
	Output power	Max 60W power supply
	Output power range	0~60W
	Ripple & Noise	≤120mV	≤240mV
	Linear Regulation	±1%
	Load Regulation	±1%
	Start-up Time (Typ)	600ms/230VAC 800ms/115VAC
	Hold Up Time (Typ)	100ms/230VAC 100ms/115VAC
INPUT	Input voltage	100-277Vac /ac dc low voltage
	Frequency	50/60Hz
	Input сurrent	0.28A/230Vac or 0.48A/115Vac
	Power factor	PF>0.6
	No-loadpower consumption	＜ 3W
	Efficiency (typ.)	90%	90%
	Inrush current (typ.)	Cold start 45A at 230Vac
	Control surge capability	L,N:2KV L,N-PE:4KV
	Leakage сurrent	Max. 0.5mA
ENVIRONMENT	Working temperature	ta: -30°C~ 50°C tc: 80°C
	Working humidity	20 ~ 99%RH, non- condensing
	Storage temp., humidity	- 40°C ~ 80°C, 10~95%RH
PROTECTION	Overtemperature	Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore.
	Over load protection	Shut down the output when current load ≥110%~150%, auto recovers.
	Short circuit protection	Protection type: It can be automatically restored after the fault is eliminated.
SAFETY&EMC	Withstand voltage	I/P- O/P:3750Vac
	Isolation resistance	I/P- O/P: 100MΩ/500VDC/25°C/70%RH
	Safety standards	IEC/EN61347;IEC/EN60950;IP20
	EMC Test Standards	EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013
Reliabilityand Quality Control	Impact aging	100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C
	Component derating	Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value
NOTE	1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3.Ensure that the AC power supply is used under the rated parameters and environment.
