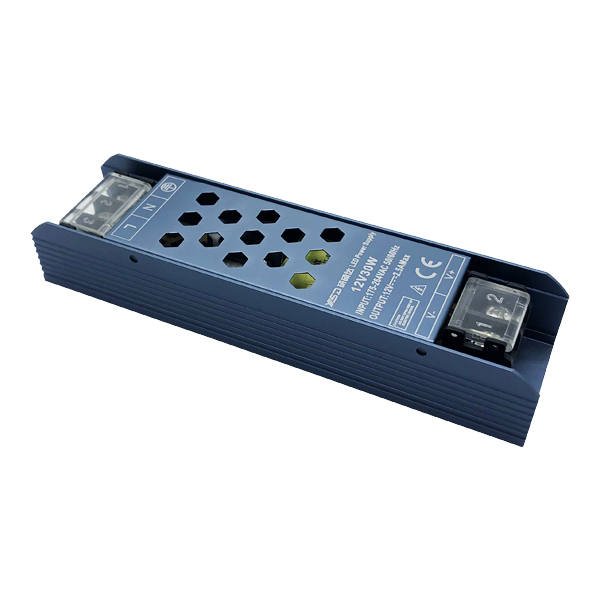

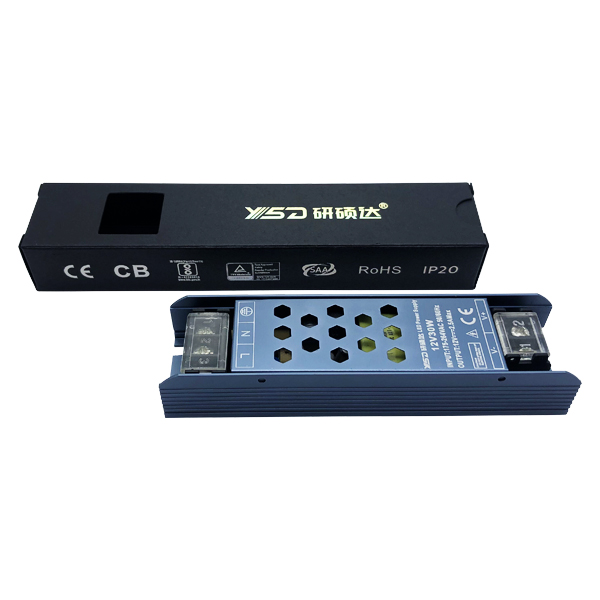

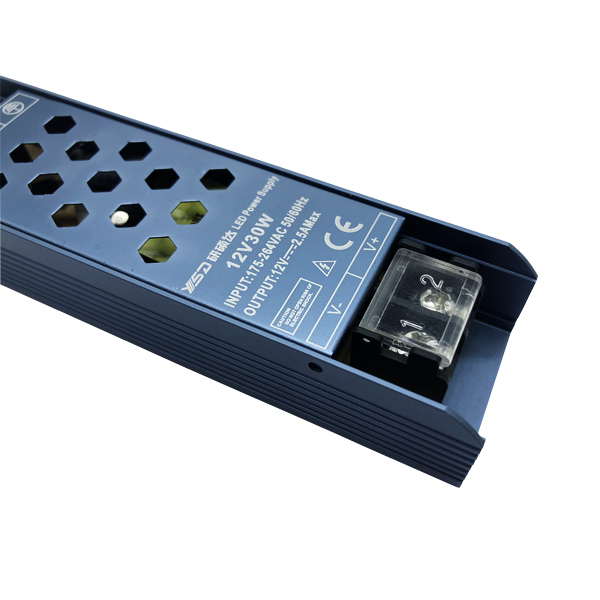

shenzhen LED strip lights power supply-30W power supply

30W driver-12v dc power supply 24V

● PF test under AC 220V and full loading

● Input voltage：175-264Vac or 100-130Vac

● Output voltage：12V，24V

● Output power range：0~30W

● Power factor：PF>0.6

● Efficiency：84%

● Certificates：CE,CB,TUV,SAA,BIS,ROHS

● Warranty period：3 years

● Download

DESCRIPTION

Shenzhen Yanshuoda LED power supply is a professional manufacturing LED strip lights power supply company in China with over 15 years experience ; YSD economic series -C series of our IP20 indoor lighting power ，30W power supply .Indoor ceiling lights swtiching power supply with 3 years warranty ;have CE ,ROHs ,CB,BIS,SAA certificate;Passed EMC ,with anti-interference,anti-radiation;perfect choice for indoor led lights for room power supply project;input 170-264V/100-130V ,PF>0.6,could be used for indoor decoration lighting , light strips，hotel lighting system,office lighting , RGB light strips etc.Very good quality with excellent components like adjustable resistance .

LED Switching Power Supply(C&V)

LED strip lights power supply

● Protections:short circuit/over load/over voltage/over temperature

● Design for indoor installations

● Cooling by free air, high reliability

● 100% full load burn-in test

● Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.

● Widely used in LED lighting and IT equipment

● Compliance to worldwide safety regulation for led lightings.

Specification

MODEL	LED power supply	YSD-30WHC-12	YSD-30WHC-24
OUTPUT	Output voltage	12V DC	24V DC
	Output voltage range	12VDC±0.5VDC	24VDC±0.5VDC
	Output сurrent	Max 2.5A	Max 1.25A
	Output power	Max 30W
	Output power range	0~30W
	Ripple & Noise	≤120mV	≤240mV
	Linear Regulation	±1%
	Load Regulation	±1%
	Start-up Time (Typ)	600ms/230VAC 800ms/115VAC
	Hold Up Time(Typ)	100ms/230VAC 100ms/115VAC
INPUT	Input voltage	175-264Vac or 100-130Vac
	Frequency	50/60Hz
	Input сurrent	0.28A/230Vac or 0.48A/115Vac
	Power factor	PF>0.6
	No-load power consumption	＜3W
	Efficiency (typ.)	84%	85%
	Inrush current(typ.)	Cold start 45A at 230Vac
	Control surge capability	L,N:2KV L,N-PE:4KV
	Leakage сurrent	Max. 0.5mA
ENVIRONMENT	Working temperature	ta: -30°C~ 50°C tc: 80°C
	Working humidity	20 ~ 99%RH, non- condensing
	Storage temp., humidity	-40°C ~ 80°C, 10~95%RH
PROTECTION	Overtemperature	Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore.
	Over load protection	Shut down the output when current load ≥110%~150%, auto recovers.
	Short circuit protection	Protection type: It can be automatically restored after the fault is eliminated.
SAFETY&EMC	Withstand voltage	I/P-O/P:3750Vac
	Isolation resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
	Safety standards	IEC/EN61347;IEC/EN60950;IP20
	EMC Test Standards	EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013
Reliabilityand Quality Control	Impact aging	100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C
	Component derating	Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value
NOTE	1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3.Ensure that the power supply is used under the rated parameters and environment.

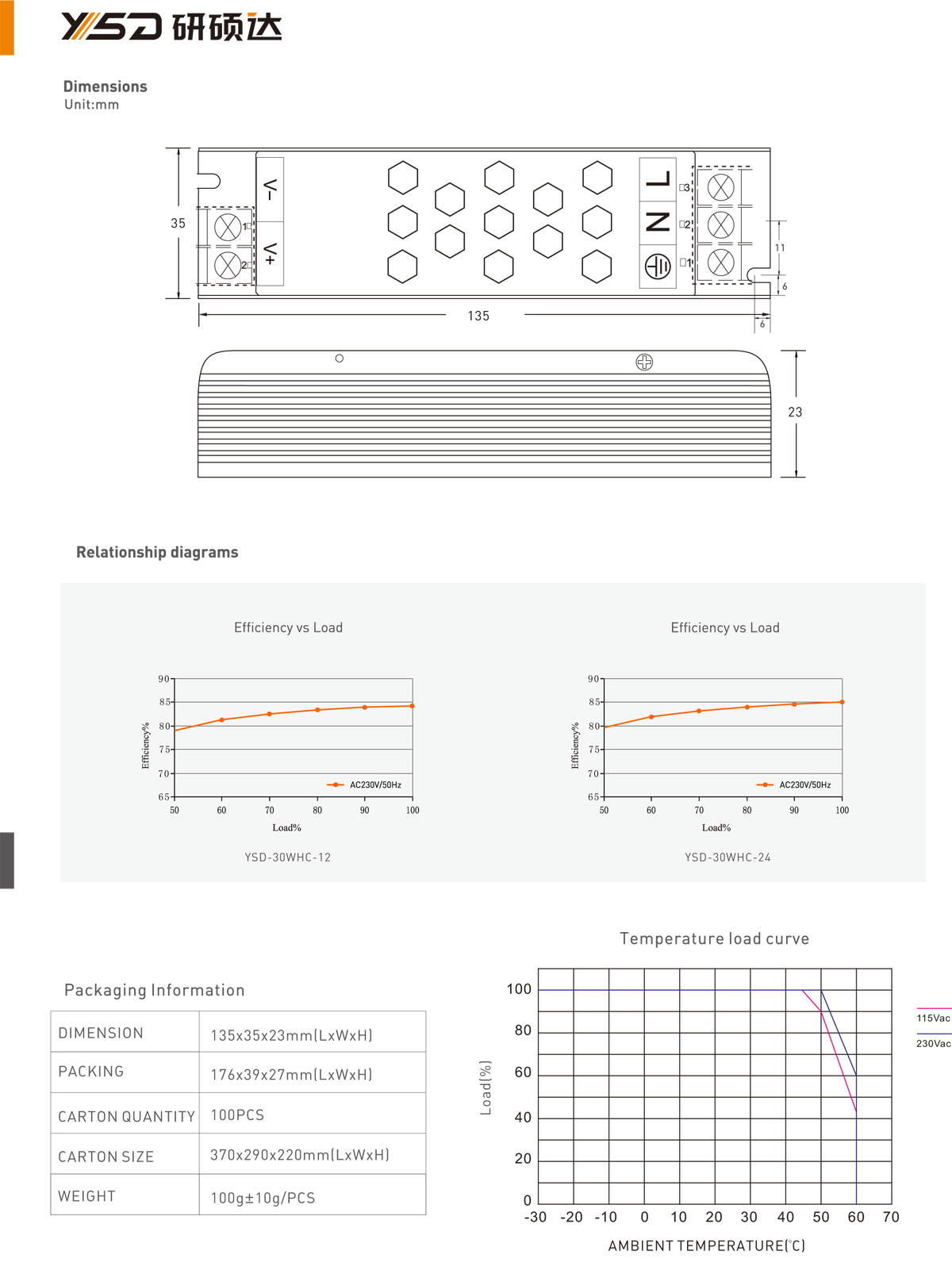

30W 12V/24V CV LEDpower supply YSD-30W/C

OTHER PRODUCTS

产品说明：DC 12V power supply/DC 24V power supply/ 30W power...
30W driver-12v dc power supply 24V
查看详情
产品说明：12V DC power supply / 24V DC power supply / 60W ...

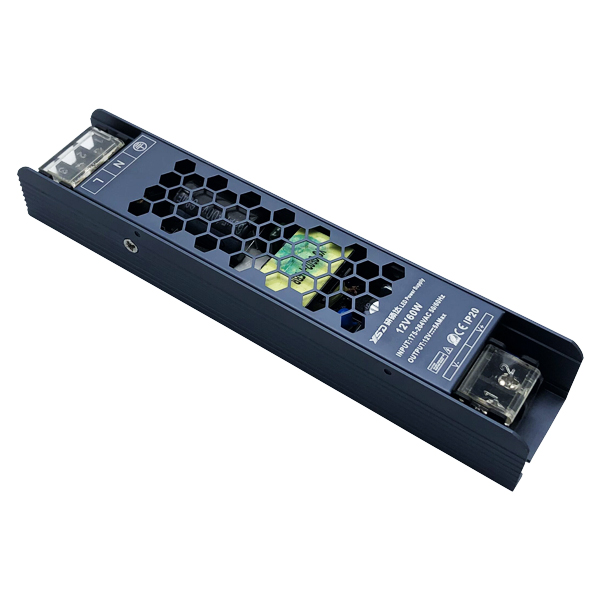

driver 60W LED power supply dc 12V-24V
查看详情
产品说明：12V DC power supply / 24V DC power supply / 100W...

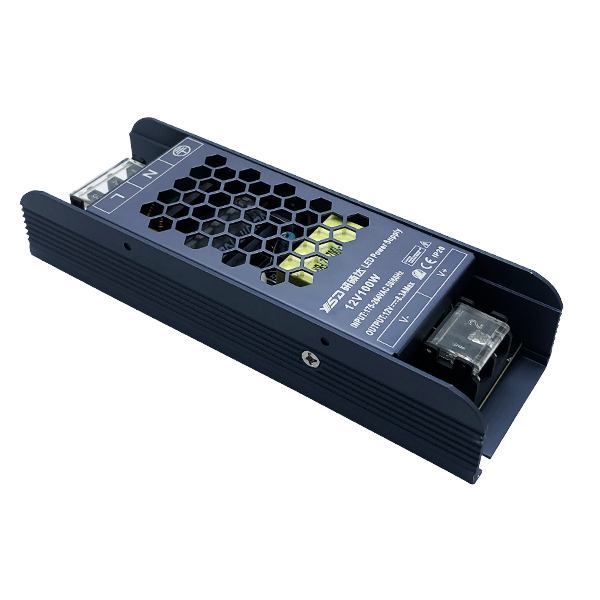

dc LED power supply -LED driver 100W
查看详情
产品说明：12V DC power supply / 24V DC power supply / 150W...

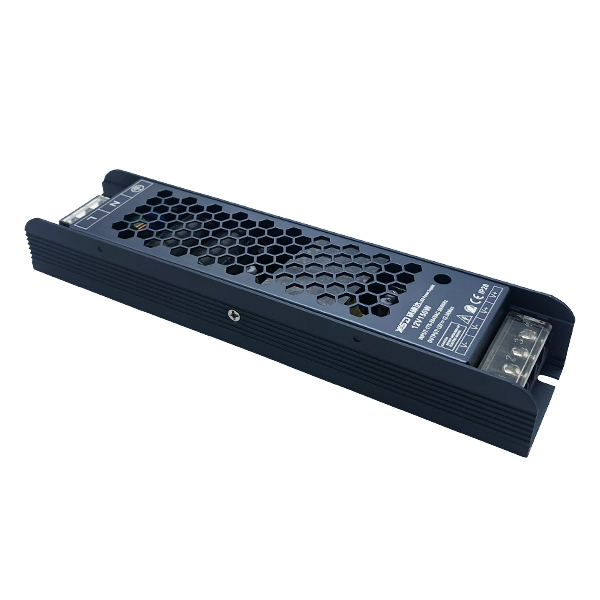

150W power supply dc ip20 driver
